شیر توپی موتوردار DN15 1/2" 12V 6nm IP54 مدل XQ2014[TOL-00352]کد کالا : TOL-00352

شیر توپی موتوردار DN15 1/2" 12V 6nm IP54  مدل XQ2014
قیمت: 809,000تومان


شیر توپی موتوردار DN15 1/2" 12V 6nm IP54  مدل XQ2014شیر توپی موتوردار DN15 1/2" 12V 6nm IP54  مدل XQ2014
این شیر با سه سیم کنترلمی شود. سیم زرد منفی میگیر. اگر سیم آبی ولتاژ بگیرد شیر طی حدودا 10 ثانیه باز می شود و اگر سیم قهوه ای ولتاژ بگیرد شیر بسبه می شود.

">Selection guide:


First: see the voltage you need (AC voltage code: AC DC voltage code: DC AC-DC voltage code: AC / DC)

Second: the scale of the pipe to catch the ball DN15 20 25 32

Special Note: billable sale after the service, one year warranty.

1. This product acquiescence made by STO or PepsiCo.

2. If there are special requirements on the product, please inform the customer service in advance, thank you.

Connection Mode Description:
CR01: 2-wire control (reverse polarity, or called reversing)
CR02: 3-wire control (two three-wire control)
CR03: 3-wire control (a three-wire control)
CR04: 2-wire control (power reset , Or power-off off)
CR05: 5-wire control (with signal feedback)



15Q / N series preferred water control system ★ can to Kaishuifang in use, replace the solenoid valve quality products

1 , gear structure, reliable performance

2 , long life, switching frequency of 10 million times or more

3 , electrical limit and mechanical limit integrated design, positioning accuracy, consistency is high, put an end to the possibility of actuator

4 , actuators and valves can be multi-angle assembly, to facilitate your allocation of space for the demand

5 , the ball valve with floating seal structure, no drip, suitable for heavy dirt and long-term no action of the field

First, the product features:

 ★ can use in Kaishuifang, the solenoid valve is replaced with quality products

1 , gear structure, reliable performance

2 , long life, the number of switches more than 100,000 times

3 , electrical limit and mechanical limit integrated design, positioning accuracy, consistency is high, put an end to the possibility of actuator

4 , actuators and valves can be multi-angle assembly, to facilitate your allocation of space for the demand

5 , the ball valve with floating seal structure, no drip, suitable for heavy dirt and long-term no action of the place

Second, the product scope:



Heat meters, central air-conditioning fan coil, fire spray, college water-saving, automatic control systems, industrial automation and other small equipment, water-saving equipment, drinking water equipment.

Third, the product phase Main technical parameters:


 Fourth, the product dimensions such as:




Fifth, the main components:

Note: Q1: indicates that the valve is connected with the adapter plate ( designed for high temperature resistance ) Q2 : indicates that there is no adapter board connection between the valve body and the actuator (unit: mm weight: kg)




Body

Seals

Seat material

Ball ball material

Brass / copper nickel / stainless steel

Silicone / Butyl cyanide / EPDM rubber

Polytetrafluoroethylene

Copper / stainless steel

Six, wiring:

CWX series of micro-electric valve control mode a total of six control mode

CR01 (two-wire control mode) wiring diagram voltage: DC3-6V / 12V / 24V



1.SW and OPEN connected, the valve open; in place after the internal automaticpower failure, the valve remains in the open state
2.SW and CLOSE connected, the valve off; in place after the internal automatic power failure, the valve remains in the state



CR02  (three-wire control mode) Wiring diagram voltage: DC3-6V / 12V / A / DC9-24V

1. SW and OPEN connected, the valve open; in place after the internal automatic power failure, the valve remains in the open state
2. SW and CLOSE connected, the valve off; in place after the internal automatic power failure, the valve remains in the state

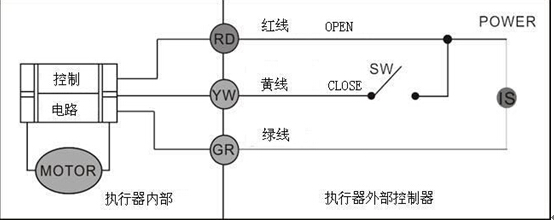

CR03  (three-wire control mode) wiring diagram Voltage: DC3-6V / 12V /  A / DC9-24V, AC220V

1. SW closed, the valve open; in place after the internal automatic power failure, the valve remains in the open state
2. SW open, valve off; in place after the internal automatic power failure, the valve remains in the state of the
Notes: power supply for the DC power , Red line then positive, blue line then negative



CR04 (Power-off reset control mode) Wiring diagram voltage: DC3-6V / A / DC9-24V , AC220V

1. SW closed, the valve on / off; in place after the internal automatic power failure, the valve remains in the open / close state, standby power supply charge
2. SW off when the valve off / open; in place after the internal automatic power, Keep in the off / open state

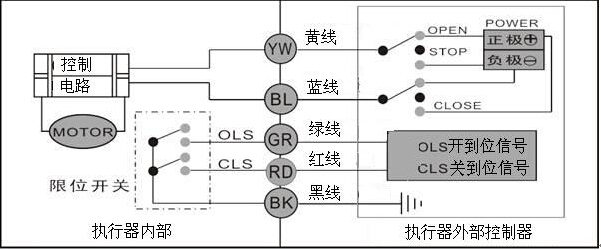

CR05 (Five-wire Microcontroller Control Mode) Wiring Diagram Voltage: DC3-6V / 12V / 24V

1.WW is connected to OPEN, the valve is open; in place after the green line gives the on-bit signal OLS control, the controller detects the OLS, the SW to STOP, the valve stops the action, keep in the open position
2.SW and CLOSE connected When the red line to give the in place signal CLS control, the controller detects the CLS, the SW connected to the STOP, the valve stops the action, keep in the off state

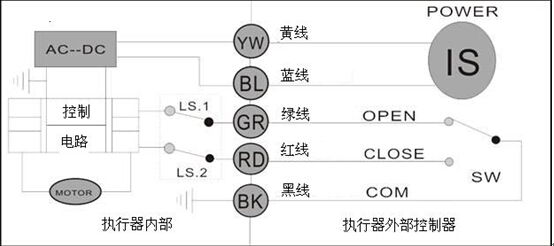

CR06 (five-wire control mode) Wiring diagram voltage: AC220V



1.WW connected with OPEN when the electric actuator is running, the valve open, in place after the internal automatic power failure, and keep the valve open state;

2.  SW and CLOSE connected when the electric actuator negative action, the valve off, in place after the internal automatic power failure, and remain in the valve off the state; actuator action for the one-way (one-way)
